Endeavor ED2000RM2U is a 2000VA/1600W 120 VAC true on-line, double-conversion, extended runtime rack/wall/tower UPS designed for critical, power-sensitive electronic environments.
This UPS model has a 5-20P input plug that requires a 125V/20Amp wall receptacle.
Minuteman Endeavor Series on-line uninterruptible power supply combines doubleconversion technology with industry-leading features in a versatile case design that allows the units to be installed in many different formats and operating environments.

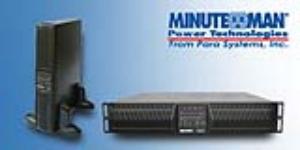

Minuteman Endeavor ED2000RM2U 2000VA Tower/Rack Mountable on-line uninterruptible power supply combines double-conversion technology with industry-leading features in a versatile case design that allows the units to be installed in many different formats and environments. In developing one of the best-valued, highest quality UPS products on the market, the Endeavor has these standard features.
Up to a 0.8 power factor (in watts) for larger capacities
Output receptacle control for non-critical load shedding capability
Extended runtime using external battery packs
Independent battery pack chargers to reduce battery recharge times
|
|
|
|
Features |
|
| - 2000VA 1600W 120V online true sinewave UPS
- Designed for power sensitive equipment and applications, best quality power output
- The ED2000RM2U has an independent Battery Bypass allows the UPS to start even if batteries have failed
- Scalable, unlimited runtime with daisy-chained external battery packs (Model EDBP48XL)
- Requires a 20AMP wall outlet with a 20AMP receptacle
- Power factor correction (PFC) guards internal UPS components from stress and damage
- SNMP-capable for easy, Web-based remote power management
- MINUTEMAN SentryPlus? Power Management Software included
- High .8 power factor allows larger capacity in a 2U size unit!
- Output does not vary by more than 2% from nominal voltage, and, no more than 2% from a true sinewave
|
|
|
|
|
Specifications |
|
Wallmount kit optional, 23" rack kit optional
19" rack or floor standing capability included, 2U size
Two receptacle circuits allow you to turn off one bank, and, keep the other on during a power outage, works via the SentryPlus software
EPO port allows you to shutdown the UPS remotely
Valve regulated lead acid batteries, safe for any type of transport
Simultaneous USB, SNMP, and, RS-232 communications
The ED2000RM2U front panel display has a load and battery meter along with status indicators
Batteries can be hot swapped
Dedicated remote emergency power off port
7 Fully protected AC outlets, 1 phone line protection, 1 network port protection
Measures 17.3" x 13.1" x 3.5"
|
|
|
|
