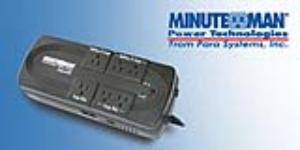

EnSpire EN600 is a 600VA/300W 120 VAC stand-by UPS designed for desktop, floor or wallmounting.
Applications: Voice and Data Networking, Servers, Sensitive Electronics
Minuteman EnSpire Series UPS is an exciting new UPS line that provides the features needed to protect your valuable equipment in a low-cost product.
Each unit has six outlets, three provide battery support along with spike and surge protection only and three with spike and surge protection only. In addition, two of the outlets are specifically spaced to support transformer blocks.
EnSpire EN600 Series UPS is an exciting new UPS line that provides the features needed to protect your valuable equipment in a low-cost product.
Each unit has six outlets; three provide battery support along with spike and surge protection only and three with spike and surge protection only. In addition, two of the outlets are specifically spaced to support transformer blocks.
EnSpire EN600 UPS has a small footprint and is uniquely designed with outlets on the top for placement on or under a desk or table and both models can wall mounted.
Minuteman EnSpire EN600 UPS is an exciting new UPS line that provides the features needed to protect your valuable equipment in a low-cost product. Each unit has six outlets; three provide battery support along with spike and surge protection only and three with spike and surge protection only. In addition, two of the outlets are specifically spaced to support transformer blocks. The EnSpire UPS has a small footprint and is uniquely designed with outlets on the top for placement on or under a desk or table. |
|
|
|
Features |
|
| -
RoHS compliant.
- Three-year warranty for electronics (Two-year warranty for internal batteries).
- Includes Minuteman? SentryPlus? software for power monitoring and control.
- Built-in USB communications port.
- Fax/modem protection.
- Two transformer-friendly spaced outlets perfect for AC adapters.
- Three UPS outlets and three surge-only outlets.
|
|
|
|
|
Specifications |
|
Maximum Power Capacity: 600VA / 300W Topology: Standby UPS Nominal Frequency: 50 or 60Hz, ??5Hz, autosensing Voltage Range: 96 - 146VAC Low Voltage Transfer Point: 96V (?? 3%) resets to utility power at 101V (?? 3%) or higher High Voltage Transfer Point: 146V (?? 3%) resets to utility power at 140V (?? 3%) or lower Surge Energy Rating: 320 J Input Protection: Resettable circuit breaker Output Non-Battery Operation Voltage Range: 120VAC: 100 - 140VAC Frequency Range: 60Hz: 55 - 65Hz or 50Hz: 45 - 55Hz Output Battery Operation Waveform Type: Simulated sine wave Nominal Voltage: 120VAC Voltage Regulation: Nominal ??5% (until Low Battery Warning) Frequency : 50/60Hz, ??0.5Hz (unless synchronized to utility) Transfer Time: 6-8 ms Typical Overload Capacity: 105% for 10-seconds, 115% Shutdown Immediately Protection: Over-Current, Short-Circuit Protected and Latching Shutdown Physical: Size - Net L x W x H : 11.97 x 4.84 x 3.35 in (304 x 123 x 85 mm) Weight - Net 7.05 lb (3.20 kg) Regulatory Compliance Safety Approvals, EMC : UL1778, cUL (CSA 22.2 no. 107.1), FCC Class B |
|
|
|
