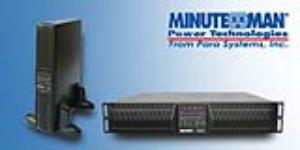

Endeavor ED3000RMT2U is a 3000VA/2100W 208 VAC true on-line, double-conversion, extended runtime rack/wall/tower UPS designed for critical, power-sensitive electronic environments.
This UPS model has a L6-30P input plug that requires a locking 250V/30Amp wall receptacle.
Minuteman Endeavor Series on-line uninterruptible power supply combines doubleconversion technology with industry-leading features in a versatile case design that allows the units to be installed in many different formats and operating environments.
Minuteman Endeavor ED3000RMT2U On-Line UPS, uninterruptible power supply combines double-conversion technology with industry-leading features in a versatile case design that allows the units to be installed in many different formats and environments |
|
|
|
Features |
|
| -
Front panel display with load/battery meter and status indicators
- Front panel display with load/battery meter and status indicators
- Independent battery pack chargers to reduce battery recharge times
- Extended runtime using external battery packs
- Output receptacle control for non-critical load shedding capability
- Up to a 0.8 power factor (in watts) for larger capacities
- 3.5-inch (2U) rack/tower case style
- Wallmount installation kit optional
- 23-inch rack or cabinet installation kit optional
- Floor-standing tower, 19-inch rack and cabinet installation kits included
|
|
|
|
|
Specifications |
|
Sensitive electronic equipment
Critical servers
Network devices
Phone systems
Product Name: Endeavor 3000VA On-Line 2U Tower 208-240V L6-30P
Backup/Run Time: 0.10 Hour 2.1 kW Full Load
0.25 Hour 1.1 kW Half Load
Battery Recharge Time: 8 Hour
Product Type: Dual Conversion Online UPS
Dimensions: 3.50" Height x 17.30" Width x 24" Depth
Input Voltage:110 V AC
220 V AC
Interfaces/Ports: 1 x DB-9 RS-232
1 x USB
Output Voltage:208 V AC
240 V AC
Batteries: 6 Sealed Lead Acid User-replaceable Hot-swappable
Form Factor: Wall-mountable
2U Tower/Rack Mountable
Load Capacity: 3 kVA/2.1 kW
Product Model:ED3000RMT2U
Network Management: SNMP Manageable Optional
Product Series: Endeavor
Receptacles:1 x NEMA L6-30R
4 x NEMA 6-15/20
Plug/Connector Type:NEMA L6-30P
Input Voltage Range:160 V AC to 280 V AC
Software Included:Minuteman SentryPlus Software
Certifications & Standards: CE, CUL, FCC Class A certified, UL
Dataline Protection: RJ-45 Network
RJ-11 Phone/Modem
Emergency Power OFF: Yes
Filtering: EMI / RFI
Frequency: 50 Hz
60 Hz
Modular Slots: 1 x Expansion Slot
Overload Protection: Circuit Breaker
Additional Information: No. of dry contact ports: 1 |
|
|
|
