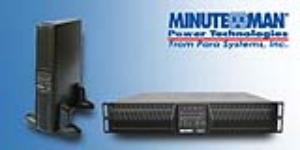

Endeavor ED1000RMT2U is a 1000VA/800W 208 VAC true on-line, double-conversion, extended runtime rack/wall/tower UPS designed for critical, power-sensitive electronic environments.
The Minuteman Endeavor Series on-line uninterruptible power supply combines doubleconversion technology with industry-leading features in a versatile case design that allows the units to be installed in many different formats and operating environments. |
|
|
|
Features |
|
| -
Front panel display with load/battery meter and status indicators
- Minuteman? SentryPlus? UPS monitoring and control software
- Independent battery pack chargers to reduce battery recharge times
- Extended runtime using external battery packs
- Output receptacle control for non-critical load shedding capability
- Up to a 0.8 power factor (in watts) for larger capacities
- 3.5-inch (2U) rack/tower case style
- Wallmount installation kit optional
- 23-inch rack or cabinet installation kit optional
- Floor-standing tower, 19-inch rack and cabinet installation kits included
|
|
|
|
|
Specifications |
|
Sensitive electronic equipment
Critical servers
Network devices
Phone systems
Model Number - ED1000RM2U
Maximum Power Capacity (VA/Watts) - 1000/800
Topology - On-line Uninterruptible Power Supply
Power Factor - 0.8
Battery and Surge Protected Receptacles - [6]5-15R
Input Connection (with 10 ft power cord) - 5-15P
Mounting/Installation - Rackmount, tower and wallmount
Input Nominal Voltage - 120VAC
Input Voltage Range - 80-138VAC
Input Frequency Range - 50/60Hz +/-6Hz Auto-sensing
Input Power Factor Correction - e97% at full load
Output Non-battery Operation Voltage /Frequency Range - 117.6 - 122.4VAC / 50/60Hz ??6Hz
Output Non-battery Operation Wave Form - True sine wave
Output Non-battery Operation Efficiency (Line Mode) - >87% (full load)
Output Battery Operation Nominal Voltage - 120VAC, User selectable: 110VAC
Output Battery Operation Voltage Regulation - Nominal ??2% until low battery warning
Output Battery Operation Frequency - 50/60Hz ??0.1Hz unless synchronized to line
Output Battery Operation Voltage Total Harmonic Distortion T.H.D. - d3% at full rated linear load
Output Battery Operation Dynamic Response - ??5% at 100% load change in 30ms
Output Battery Operation Transfer Time - 0ms
Output Battery Operation Runtime: Half Load/Full Load (minutes) - 13/4
Battery Type - Sealed, non-spillable, maintenance free, value regulated lead acid
Typical Recharge Time - 8 hours from total discharge
Typical Battery Life - 3-5 years, depending on discharge cycles and ambient temperature
System Voltage - 24VDC
Internal Battery Quantity-Type - 2-12V8.5AH
Surge Energy Rating (Joules) - 800J
Surge Current Capability - 6500Amps total
Surge Response time - 0ns (instantaneous) normal mode; 5ns common mode
Noise Filter - normal and common mode EMI/RFI suppression
Audible Noise at 1 m (3 ft.) - <45dBA
Operating (max)/Storage Temperature - +32 to +104oF (0 to 40oC) / +5 to +113oF (-15 to +45oC)
Operating/Storage Humidity - 95% non-condensing
Operating/Storage Elevation - 0 to 10,000 ft (0 to 3,000 m) / 0 to 50,000 ft (0 to 15,000 m)
Size - Net (H x W x D) in - 3.5 x 17.3 x 13.1 in
Size - Shipping (H x W x D) in - 9.0 x 20.0 x 23.6 in
Weight - Net lb (kg)/Shipping - 120VAC - 29.0/39.4 lb (13.2/17.9 kg)
|
|
|
|
