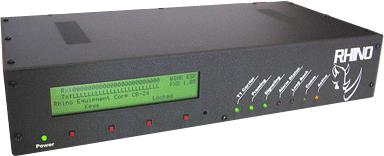

A channel bank acts as a T1 mux, converting 24 digital channels to 24 analog channels. Our T1 channel bank comes with a 5 year warranty, and our new price is hundreds of dollars less than most refurbished channel banks. Rhino Channel Banks are much easier to install than any other channel bank on the market today. There is no programming or software to learn. With our new "Auto-Config" feature, you can just plug it in, and the channel bank is ready to go. If you are needing more than just a voice application, the Rhino Channel Bank now supports data, and is configurable channel by channel. |
|
|
|
Features |
|
| Single channel configuration, each channel may have a different analog start mode, signaling protocol, line current, or gain
Self diagnostics, verbose error reporting, loopback modes
V.35 fractional data interface, user selectable to 56K or 64K
FLASH based system configuration
Internal power supply module, no external components
T1 CSU via RJ48C, with line buildout programmability
CSU auto detects T1modes: D4 or ESF, AMI or B8ZS
Asterisk soft PBX tested and ready!
Automatic T1 configuration using artificial intelligence software, no configuration switches
4x40 LCD real-time status display shows independent AB bit signaling
|
|
|
|
|
Specifications |
|
Operating Environment: 0 C 70 C 32 F 166 F
Humidity: Non-condensing up to 95% relative humidity
Power Requirements: 110 VAC
Power Usage: Fuse Rating: 1A
T1 Requirements: Standard 4 wire T1 via an RJ48C jack
Start Protocols: Immediate, Loop, Ground, Wink, and DID
Framing protocols: D4 or ESF
Line Coding: AMI or B8ZS
Analog Output: 24 Loop start lines via 25 pair amphenol connector
Data Ouput: DB25 Male
Physical size: 3.5 tall (2U), 17 wide and 8.5 deep
Weight: 12 lbs.
Mounting: 19 or 23 rack mountable. Unit can also be mounted on the wall.
Channel capacity: 24 POTS FXS
Caller ID capab |
|
|
|
