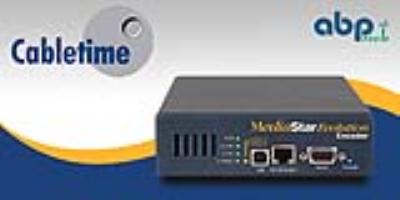

The MediaStar Evolution 775 Encoder is a robust and versatile MPEG encoder designed for standalone use with IP networks and the MediaStar Evolution 775 Encoder converts analog video and audio signals to MPEG-2 or MPEG-4 digital signals and streams them over a LAN/WAN data network. A MediaStar hardware decoder or software viewing application connected to the LAN/WAN can decode the data streams from the network and present synchronized video and audio for viewing at multiple remote locations. Includes: 775 Encoder Appliance, Quick Start Guide, IP address label, USB Driver CD, 2 meter RS232 9-way D Male-Female, Cable - 2 meter - RJ45 Cat-5 blue patch cable, Cable - 2 meter - USB 2.0 A TO B, BNC plug/phone jack adapter, 4 x 10mm self adhesive feet, 12V DC external power supply, 'figure 8' power lead.
Features
More About Cabletime IPTV SD Appliance Encoder
A standalone unit housed in a freestanding metal box. The Appliance
Encoder has IP Browser/RS232/USBv1.1 control interfaces and is built
around an ultra reliable dual-core computing engine running under Linux.
Video encoding
MPEG-2 MP@ML. FD1, HD1, 2CIF, CIF, and QCIF resolutions
Unicast or multicast transport streams
Constant and variable bitrate encoding
MPEG-4 ASP and SP. FD1, HD1, 2CIF, CIF and QCIF
resolutions
Unicast or multicast ISMA streams
Constant, variable and average bitrate encoding
MPEG-4 Dual Encode: Two simultaneous MPEG-4
encodes of the same source; one low bitrate (CIF
resolution) and one high bitrate (FD1 resolution) Audio encoding
MPEG-2 Layer 2
MPEG-4 AAC LC Video inputs
Composite - BNC
S-Video - Mini DIN
RGB/YPbPr - 3 x BNC
SCART (RGB + sync on CVBS)
PAL and NTSC Audio inputs
Stereo line level ??? 2 x RCA Network
10/100 BaseT for streaming and control interface Serial Port
RS232 interface for control and configuration USB
USB v1.1 interface for control and configuration Power
100 - 240VAC. 15 Watts via IEC Mains connector Dimensions
14.3cm x 22cm x 4.1cm, 5.7??? x 8.7??? x 1.7??? Weight
1.1Kg Environmental
0 - 40??C Approvals
FCC Part 15, CE, CB. Chassis
Up to 3 encoder units in a 1U 19??? rack
