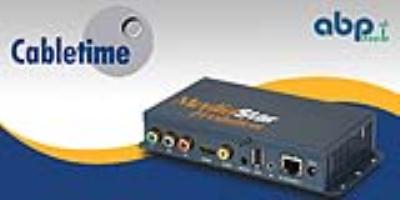

The MediaStar 780/4GB is a Digital Signage Media Player and IPTV Receiver for delivery of High Definition TV, multimedia, and web pages to any HDready display screen. The 780/HD provides a powerful and ultra reliable, solid state ???out of the box??? solution for your entire Digital Signage and IPTV delivery requirements. Includes: 780/4G unit, Quick Start Guide, 1.5m HDMI to HDMI cable, 3.5mm jack to stereo cable, Phono to Phono Composite cable, 5V DC external power supply.
Features
Built around a reliable multi-core computing engine running under
Linux, the 780/4GB is capable of delivering both live HD/SD MPEG-4
AVC/H.264 and MPEG-2 video streams and locally stored HD/SD MPEG-4
AVC/H.264 and MPEG-2 files either from the on-board memory of 4GBytes
or a locally connected USB key. In addition, the 780/4GB can show
PowerPoint presentations (converted to HTML), JPEGs, PNGs and HTMLs, as
well as show up to the minute webpages. The support of HDTV offers a vastly improved viewing experience and
with the continued support of SDTV, the MediaStar Evolution 780/4GB IPTV
Receiver ensures the ever changing TV requirements for an organization
can be supported through the deployment of the units in
conjunction with the MediaStar Evolution IPTV Headend.
More About Cabletime 780 HD IP Digital Signage and Decoder- 4GB Memory
Live Network Streams Multicast/Unicast
UDP based AV streams. MPEG-4 AVC/H.264 and MPEG-2 video/audio contained
in an MPEG-2 TS. 480i, 480p, 576i, 576p, 720p, 1080i, 1080p60. Locally Stored Files (on-board memory of 4GB)
Multicast/Unicast UDP based AV streams.
MPEG-4 AVC/H.264 and MPEG-2
video/audio contained in an MPEG-2 TS.
480i, 480p, 576i, 576p,
720p, 1080i, 1080p60. Digital Terrestrial and Satellite TV
DVB-T and DVB-S2 compliant Video Output - Digital HD HDMI - 720p(60fps), 1080i(30fps) Video Output - Analogue HD YPbPr/RGB - 720p(60fps), 1080i(30fps) Video Output - Digital SD HDMI - 480i, 480p, 576i, 576p Video Output - Analogue SD YPbPr/RGB - 480i, 480p, 576i, 576p, CVBS - NTSC, PAL Video Out - Connectors 1 x HDMI (SD/HD) 3 x Phono - YPbPr/RGB (SD/HD) 1 x Phono - CVBS (PAL/NTSC) Audio Decoding MPEG-1/2 Audio Layers I, II MPEG-2/4 AAC LC Audio Out - Connectors HDMI - Digital Stereo Audio 3.5mm Jack - Analogue Stereo Audio Network Ethernet 10/100 Base T. RJ-45 modular jack with integrated LEDs. Mode of Operation Standalone or in conjunction with the MediaStar Evolution Administration Software. IP Setup and Control Configuration via On-Board Browser. IP control protocol to operate with 3rd party Touch Panel controllers. IR Control Channel,
volume and setup control via MediaStar Remote Control Unit. Control
through on-board IR receiver or using an IR extender. RS232 Serial port, up to 115200 baud for screen on/off control. Software Updates Latest software can be loaded either through an IPconnection to an HTTP server or by inserting a USB key. Dimensions: 16.5cm x 9.4cm x 3.1cm 6.5??? x 3.7??? x 1.2??? Weight: 0.25Kg/0.55Ibs Operating Temperature: 0 - 40oC (32oF -104oF) Operating Platform: Linux 2.6 Kernel Power Supply: 5V DC, 2A (Power over Ethernet option available) Power Dissipation: 7W max Approvals: FCC Part 15 class A, CE, CB On-Board Browser: Mozilla Firefox
